All the advantages of the PANTONE Formula Scales ....

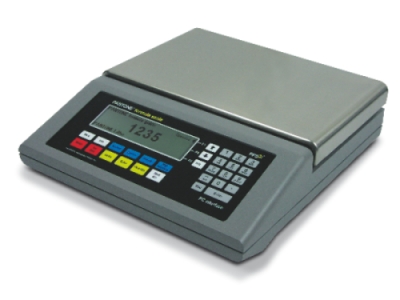

PANTONE Formula Scale
Model PFS3i-5-22.... programmable for ANY ink mix!

With this new scale you can enjoy the convenience and accuracy of using a PANTONE Formula Scale for mixing any colour ink for which you have a formula - no matter what it is or the ink system and bases used.

The PC 'Programmable' PANTONE Formula Scale 3i opens up a whole new world of ink mixing.

As you would expect, the  PANTONE Formula Scale 3i comes ready programmed with ALL the formulas contained in the standard PANTONE Formula Guide (including metallics & fluorescents), and the latest colours in both the PANTONE Metallic Formula Guide and the PANTONE Pastel Formula Guide. Now all PANTONE Formula Scale 3 Models are also programmed with the NEW PANTONE Goe™System Colour Range.

Over and above all these standard PANTONE Formulas, you can store as many as 30,000 different mixes, in up to 64 different ink systems. The memory capacity of this scale is huge!

The FREE PC based 'Formula Master' software provided enable you to enter and build up your own databases of colour ink formulations, then to download them to the scale. Also, most forms of existing databases can readily be converted to the required format. Once downloaded, they are stored in the scale memory, and the PANTONE Formula Scale acts as a stand-alone mixing centre. So the connection to the PC is no longer required - you don't have to take the PC into the ink room!

In addition, the 'programmable' PANTONE Formula Scale 3i has all the advanced features of the PANTONE Formula Scale 3+ to make ink mixing fast and accurate!

Specifications

Pre-Programmed Formulas ALL PANTONE Colours found in the Pantone Formula Guide, PANTONE Metallic Formula Guide, the PANTONE Pastel Formula Guide and now the NEW PANTONE Goe™System Colour Range
PC Programmable Up to 30,000 Formulas in up to 64 Base Ink Systems downloaded from the PC
User Entered Formulas Up to 100 Custom Formulas using any Bases stored in the Scale
Weighing Accuracy ± 0.05% ± 1/2 Scale Division
Formulation Accuracy ± 0.05% ± 1/2 Scale Division
Tare Range Full Scale Capacity

Model Information

Model Number PFS3i 5-22 PFS3i 5-12
Mixing Capacity 5kg 10 lb 5kg 10 lb
Max. Capacity 6kg 12 lb 6kg 12 lb
Standard Division 0.001kg 0.001 lb 0.001kg 0.001 lb
High Resolution Mode 0.0001kg 0.0002 lb 0.0001kg 0.0002 lb
Power Supply 230 V, 50 Hz 120 V, 60 Hz



Model Number PFS3i 10-22 PFS3i 10-12
Mixing Capacity 10kg 20 lb 10kg 20 lb
Max. Capacity 12kg 25 lb 12kg 25 lb
Scale Division 0.001kg 0.001 lb 0.001kg 0.001 lb
High Resolution Mode 0.0002kg 0.0005 lb 0.0002kg 0.0005 lb
Power Supply 230 V, 50 Hz 120 V, 60 Hz



PANTONE Formula Scales are simply the best way to match PANTONE Colours!  If you are still not convinced, see our User Survey.

Buy PANTONE Formula Scales and Ihara Densitometers by calling our sales team direct on +44 (0) 1223 228275

For more information, you can download a descriptive leaflet detailing the full range of PANTONE Formula Scales as an Adobe Acrobat file in English, French, German, Italian and Spanish.

PANTONE Formula Scales are manufactured exclusively by Cherlyn Electronics Limited under license to Pantone LLC.
